Description

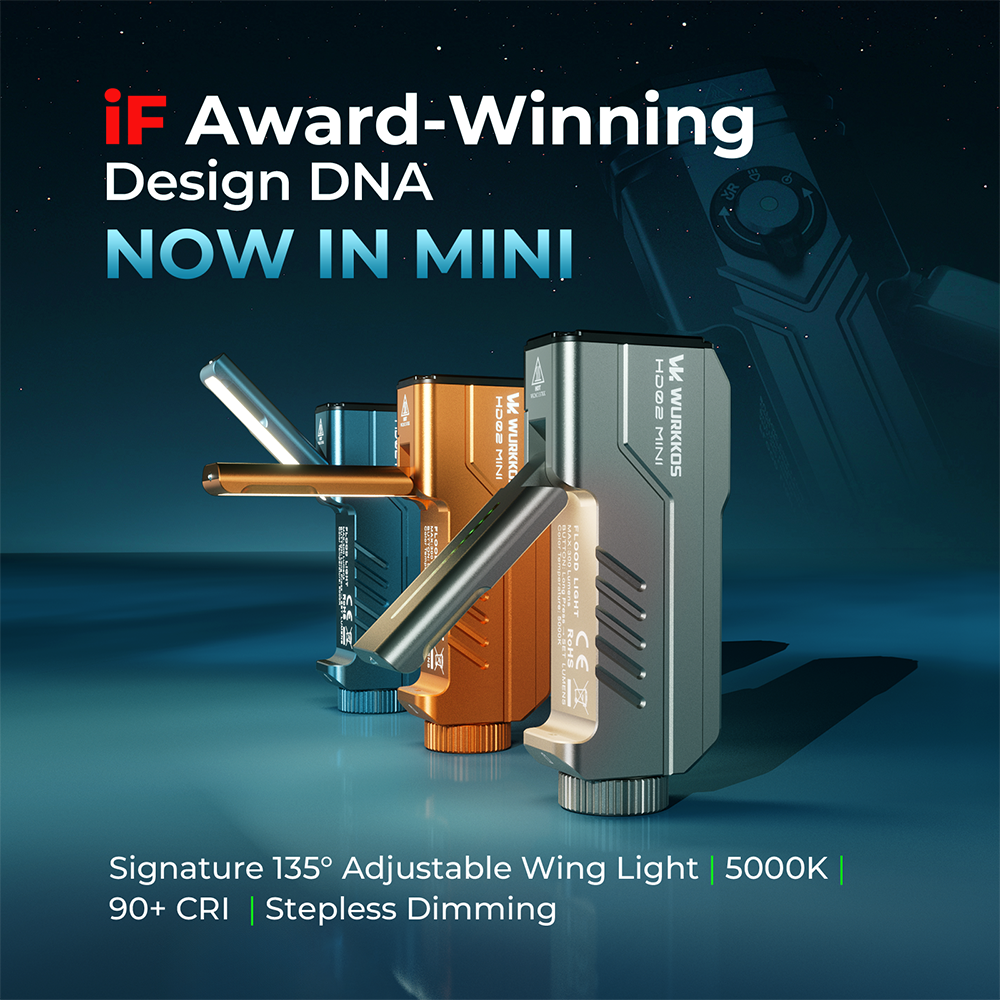

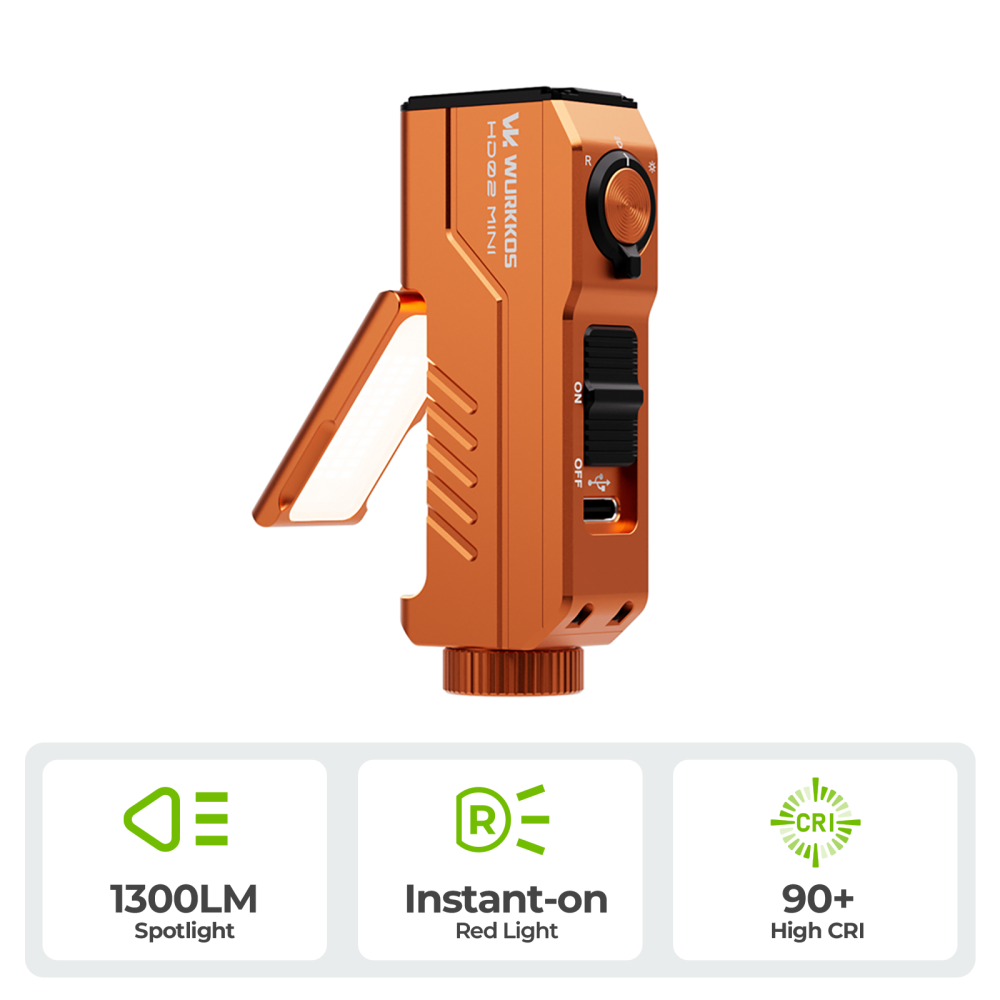

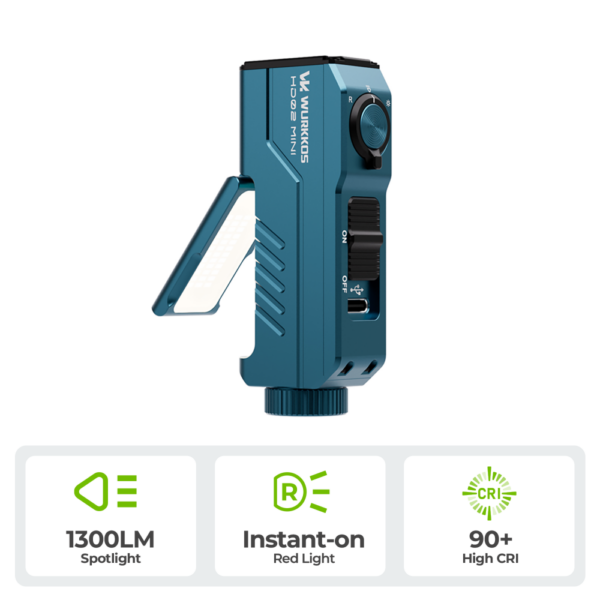

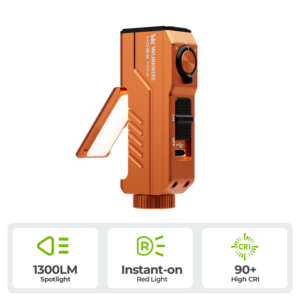

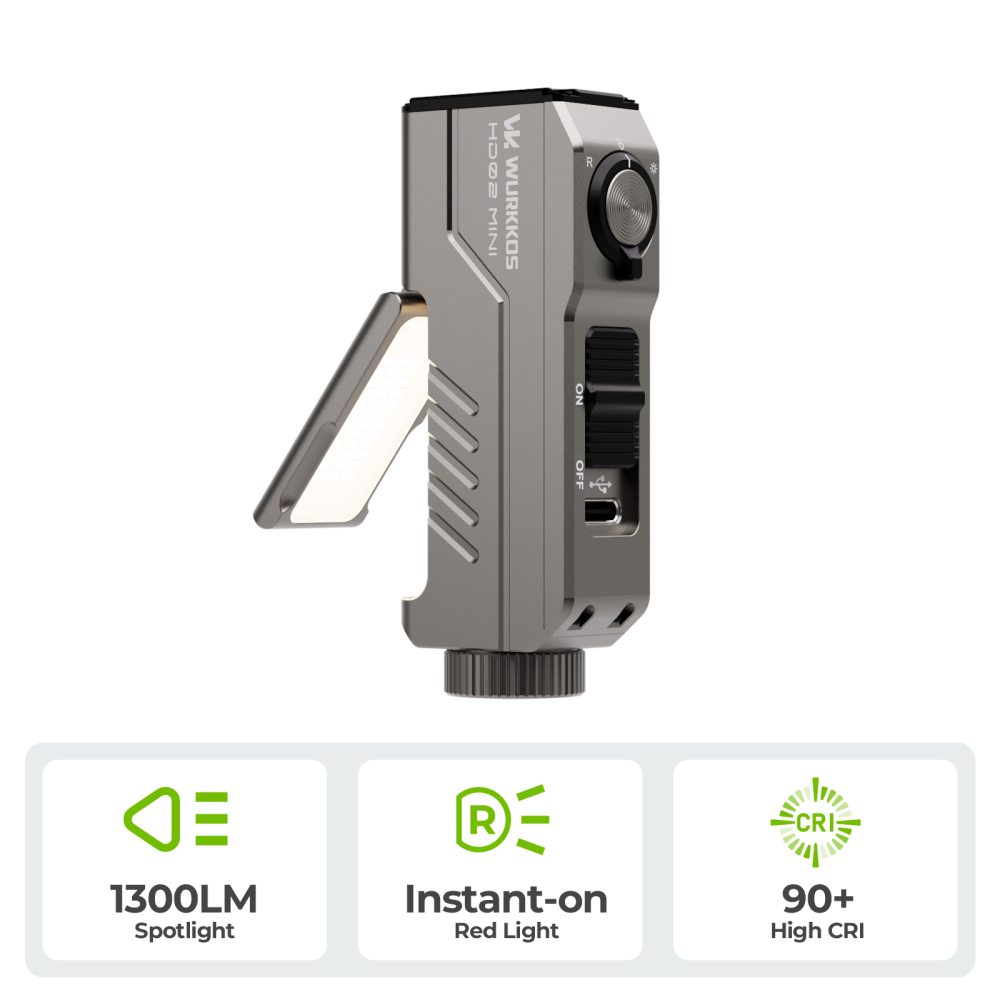

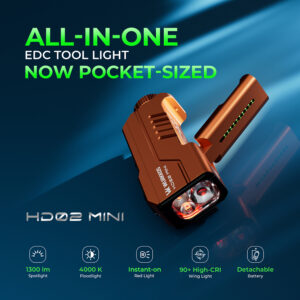

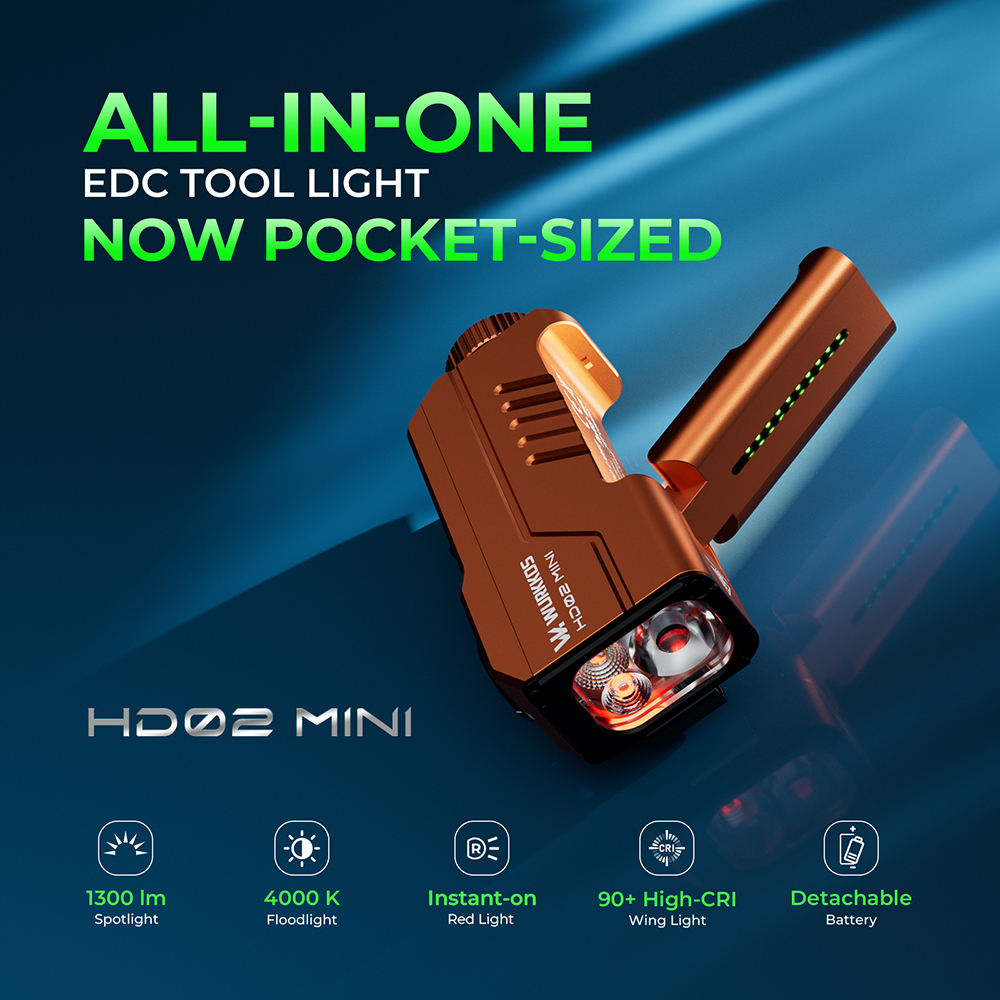

The Wurkkos HD02 Mini is a pocket tool light with four beams: a spotlight, a flood, a folding wing, and a red light. The wing tilts up to 135°. It is listed at 320 lumens, 5 000 K and 90+ CRI. The spotlight is 1 300 lumens at 6 000 K, with a peak throw of 204 metres. The flood is 400 lumens at 4 000 K. The red emitter is 660 nm.

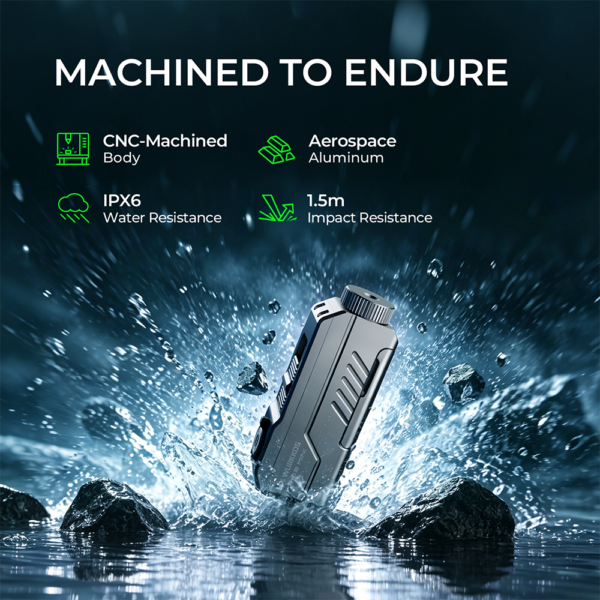

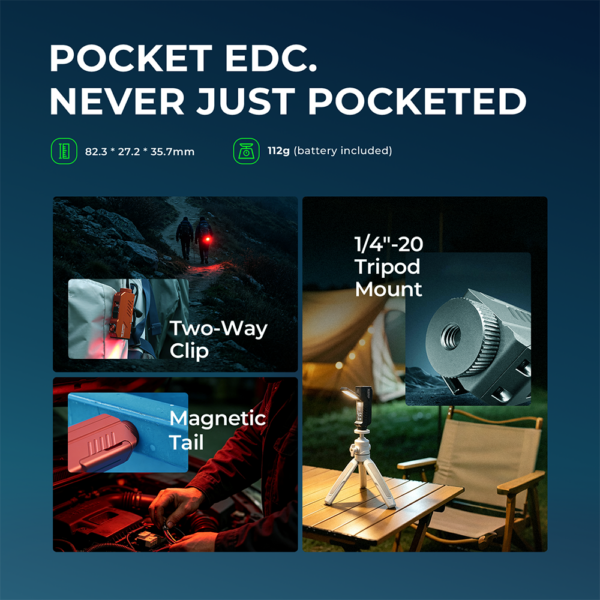

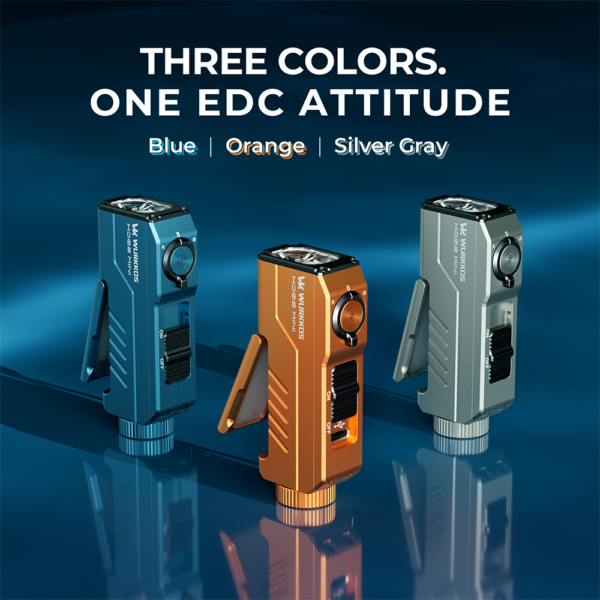

Size is 82.3 mm × 27.2 mm × 35.7 mm. Weight is 112 g with the battery. The body is CNC-machined aerospace aluminium. Rating on the supplied sheet is IPX6 and a 1.5 m drop. A two-way clip, a magnetic tail and a 1/4-20 thread are on the body. Colours shown are blue, orange and silver grey.

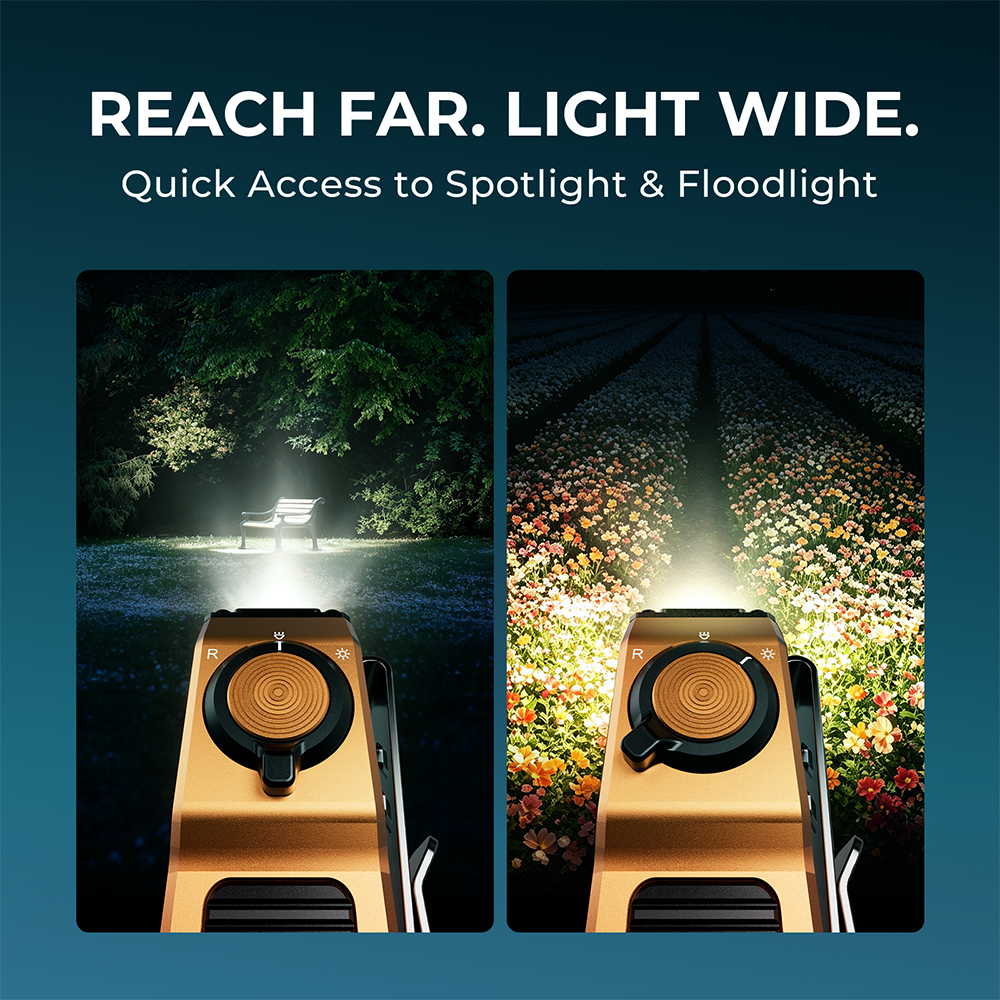

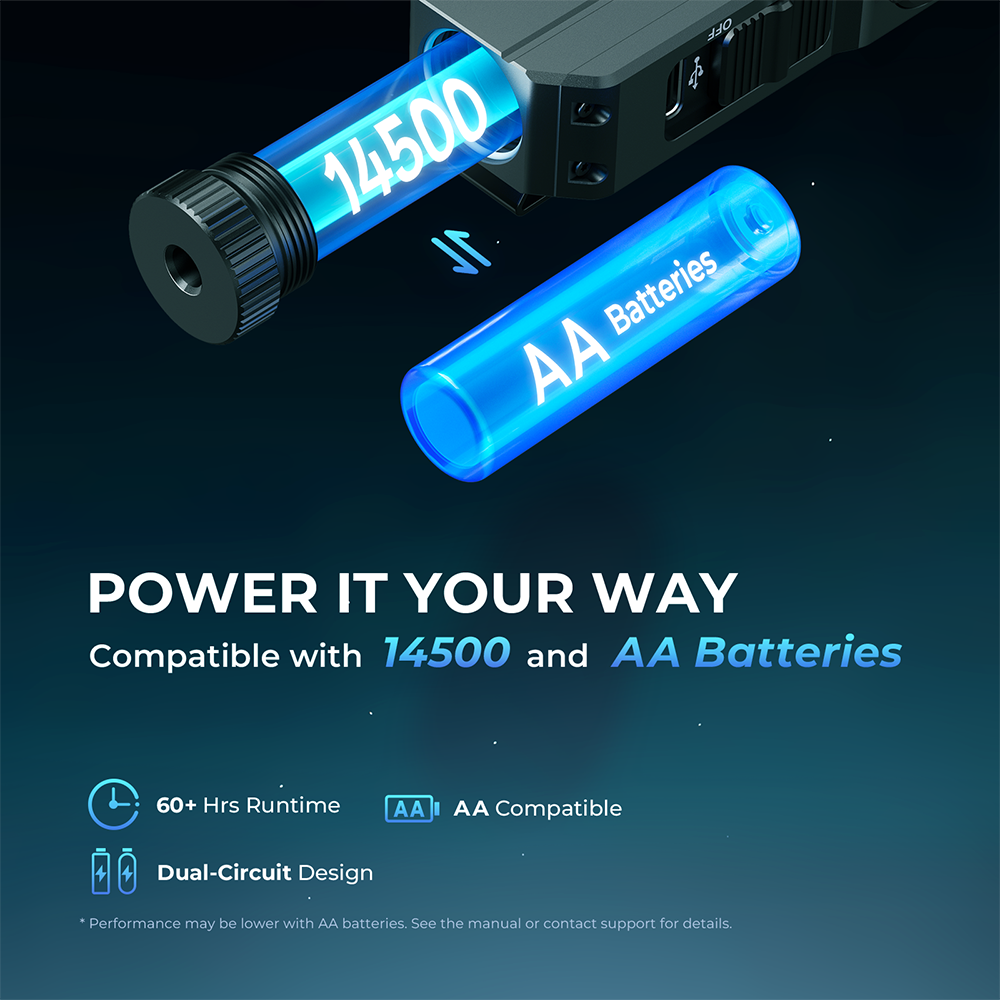

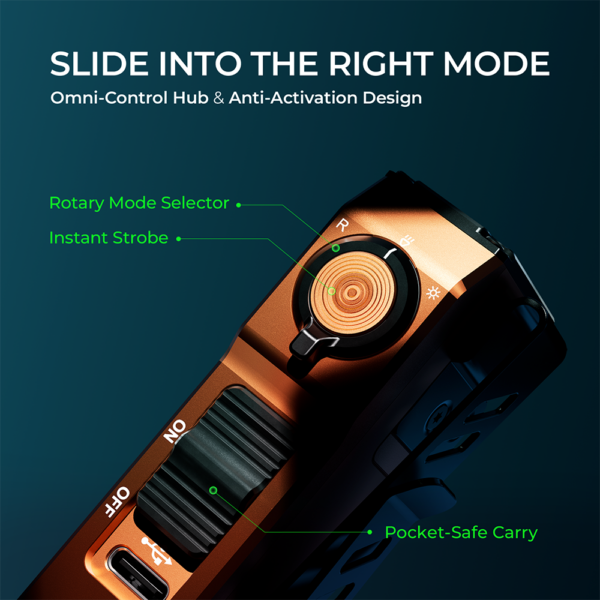

A rotary selector picks the mode. A slider locks the light for pocket carry. Instant strobe is marked on the dial. USB-C charging is on the side. The cell is a detachable 14500, included. A standard AA also fits. Output is lower on AA.

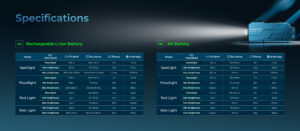

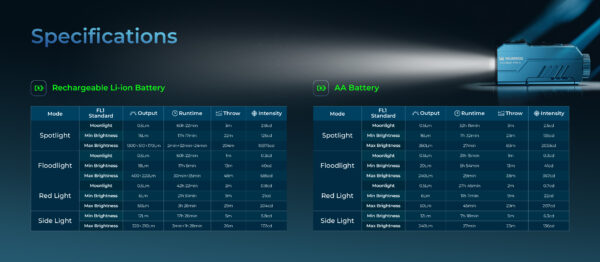

14500
| Beam | Level | Output | Runtime | Throw | Intensity |
|---|---|---|---|---|---|
| Spot | Moon | 0.5 lm | 60 h 22 min | 3 m | 2.8 cd |
| Spot | Min | 15 lm | 17 h 17 min | 22 m | 125 cd |
| Spot | Max | 1 300 → 510 → 170 lm | 2 + 32 + 24 min | 204 m | 10 375 cd |
| Flood | Moon | 0.5 lm | 60 h 22 min | 1 m | 0.3 cd |
| Flood | Min | 18 lm | 17 h 6 min | 13 m | 40 cd |
| Flood | Max | 400 → 220 lm | 30 + 35 min | 48 m | 585 cd |
| Red | Moon | 0.5 lm | 42 h 22 min | 2 m | 0.8 cd |
| Red | Min | 6 lm | 21 h 51 min | 9 m | 21 cd |
| Red | Max | 50 lm | 3 h 28 min | 29 m | 204 cd |
| Side | Min | 12 lm | 17 h 26 min | 5 m | 5.8 cd |
| Side | Max | 320 → 210 lm | 3 min + 1 h 28 min | 26 m | 172 cd |
AA
| Beam | Level | Output | Runtime | Throw | Intensity |
|---|---|---|---|---|---|
| Spot | Moon | 0.5 lm | 32 h 15 min | 3 m | 2.5 cd |
| Spot | Min | 16 lm | 7 h 32 min | 23 m | 135 cd |
| Spot | Max | 350 lm | 27 min | 83 m | 2 033 cd |
| Flood | Moon | 0.5 lm | 31 h 15 min | 1 m | 0.3 cd |
| Flood | Min | 20 lm | 5 h 54 min | 13 m | 41 cd |
| Flood | Max | 240 lm | 29 min | 38 m | 367 cd |
| Red | Moon | 0.5 lm | 27 h 46 min | 2 m | 0.7 cd |
| Red | Min | 6 lm | 11 h 11 min | 9 m | 22 cd |
| Red | Max | 50 lm | 45 min | 29 m | 207 cd |
| Side | Min | 12 lm | 7 h 18 min | 5 m | 6.3 cd |
| Side | Max | 240 lm | 27 min | 23 m | 136 cd |
The red graphic also shows stepless dimming, strobe, SOS and beacon. Those runtimes are not on the table. Use the spot on a path, the flood or wing under a bonnet, and red in a tent so you keep your night vision. Do not look into the beam. High steps down. IPX6 is for heavy spray, not diving. Close the port before it gets wet.

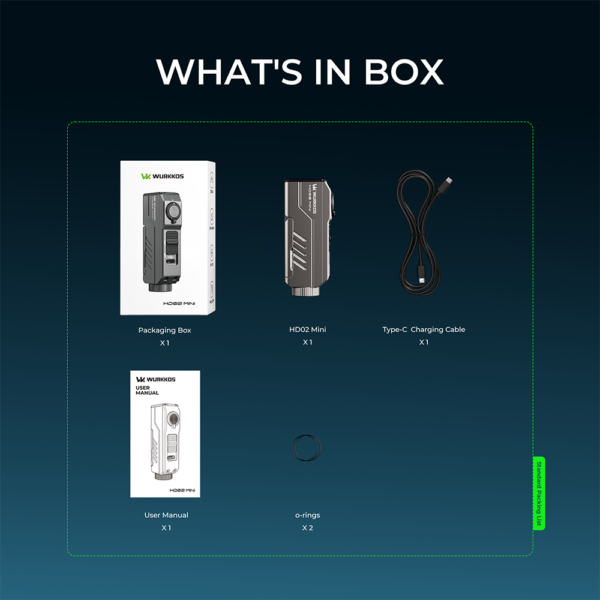

What’s Included
- Wurkkos HD02 Mini
- 14500 rechargeable battery
- USB-C charging cable
- User manual
- 2 O-rings
