The Sofirn SR23 is a compact, dual-source powerhouse combining a blinding 3300-lumen white flood (200 m) with a high-powered 3 W 365 nm UV light — perfect for everyday carry, scorpion hunting, pet stains, banknote/authenticity checks, or outdoor adventures. Independent side switches give instant access to white or UV with no mode cycling. USB-C rechargeable, replaceable 21700 battery, IP68 waterproof, stainless steel strike bezel and magnetic tail. Backed by a 1-year warranty.

Dual Independent Light Sources

• White Light: 3 × TN-3535 LEDs (6500–7000 K) → 3300 lm Turbo → 200 m throw
• UV Light: SST08 365 nm → 3 W high power / 0.8 W low

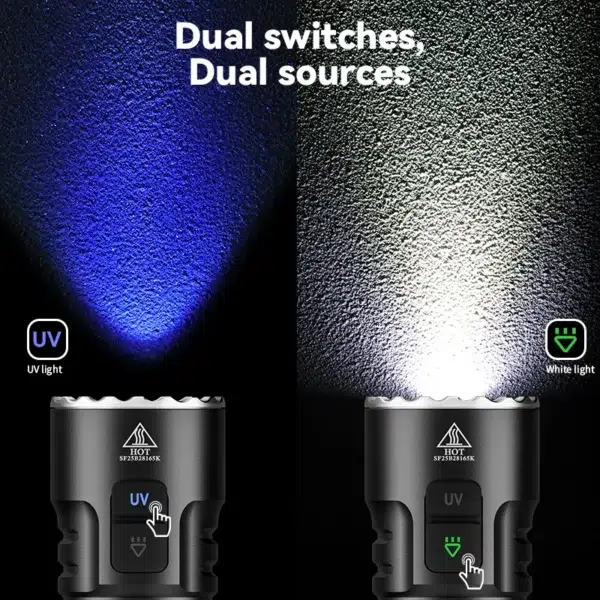

• Separate switches: one for white, one for UV — instant activation, no confusion

Boost Driver = Stable Brightness White light uses a regulated boost driver — maintains consistent output even as battery voltage drops (no PWM flicker).

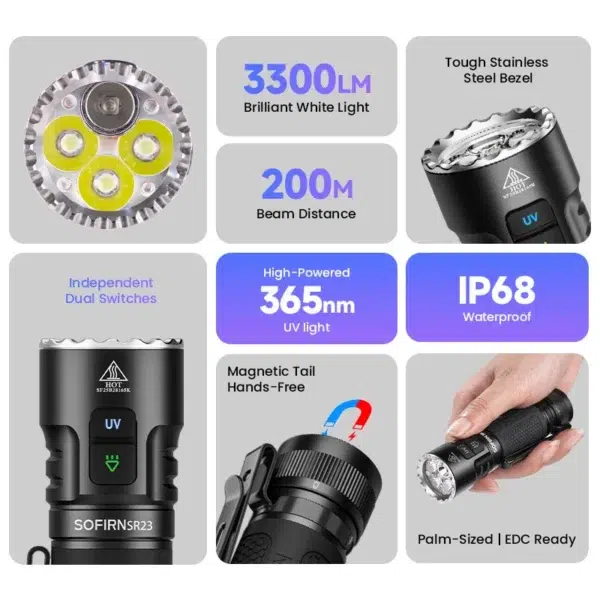

Palm-Sized EDC Monster Only 114.9 mm × 31.5 mm and 86 g (without battery) — fits pocket or palm perfectly. Tough stainless steel bezel + magnetic tail + deep-carry clip.

Package Dimensions and Weight

• Package Width: 8.0 cm
• Package Length: 15.0 cm
• Packaged Height: 5.0 cm
• Packaged Weight: 220 g

Assembled Product Dimensions and Weight

• **
• Width: 3.15 cm
• Length: 11.49 cm
• Height: 3.15 cm
• Weight: 86 g (without battery)

Key Features and Specs 3300 lm white · 200 m throw · 3 W 365 nm UV · Dual switches · USB-C charging · Magnetic tail · Stainless bezel · IP68 · 21700 battery (included)

Specifications Overview

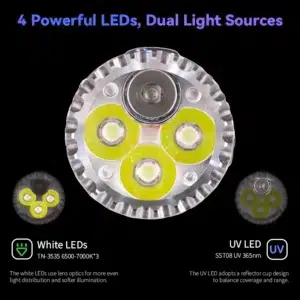

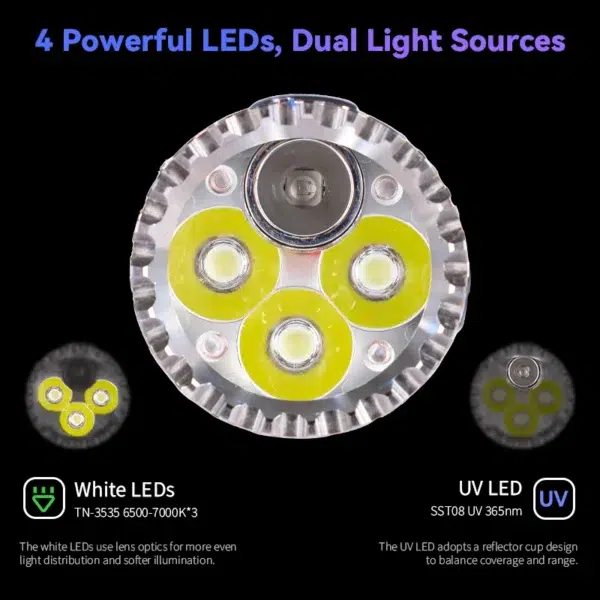

• LEDs: 3× TN-3535 6500-7000K (white) + 1× SST08 365 nm UV
• Max Output: 3300 lm (white) / 3 W (UV)
• Throw: 200 m
• Battery: 1× 21700 (included)
• Charging: USB-C
• Waterproof: IP68 (2 m)
• Impact: 1 m
• Dimensions: 114.9 × 31.5 mm
• Weight: 86 g (without battery)
• Warranty: 1 Year

Package Contents

• Sofirn SR23 Flashlight
• 21700 5000 mAh Battery
• USB-C Cable
• Lanyard
• Spare O-rings
• User Manual
