MANUAL

The ThruNite Archer Mini is a small USB-C pocket light with a tactical tail switch and a two-way clip. An SST20 LED and TIR lens give 405 lumens on High and a maximum throw of 87 metres. Peak intensity is 1880 cd.

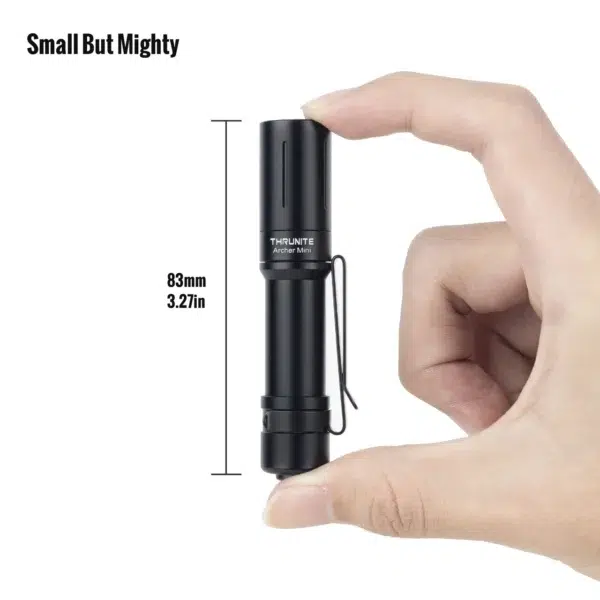

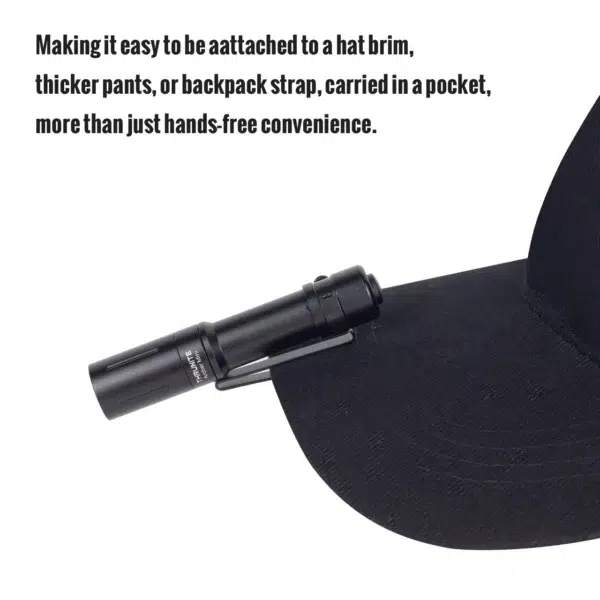

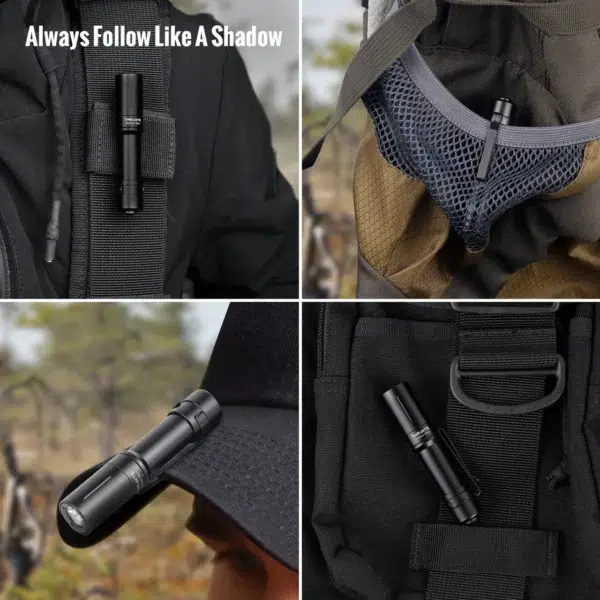

Length is 83 mm. Weight is 34 g. The clip holds the light on a hat brim, pocket, backpack strap or thicker trousers for hands-free use.

A rotating head sleeve covers the USB-C port. Unscrew the sleeve to charge. The built-in ThruNite 320 mAh 10400 cell charges on USB-C. The indicator is red while charging and blue when full. The light blinks when the cell is low.

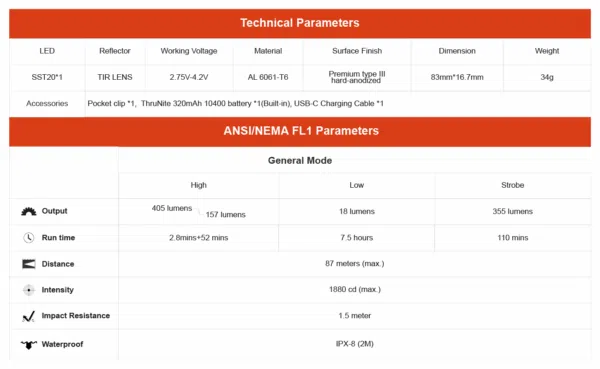

Modes and runtimes, tested with the built-in 320 mAh cell:

Max throw: 87 m. Max intensity: 1880 cd.

Controls:

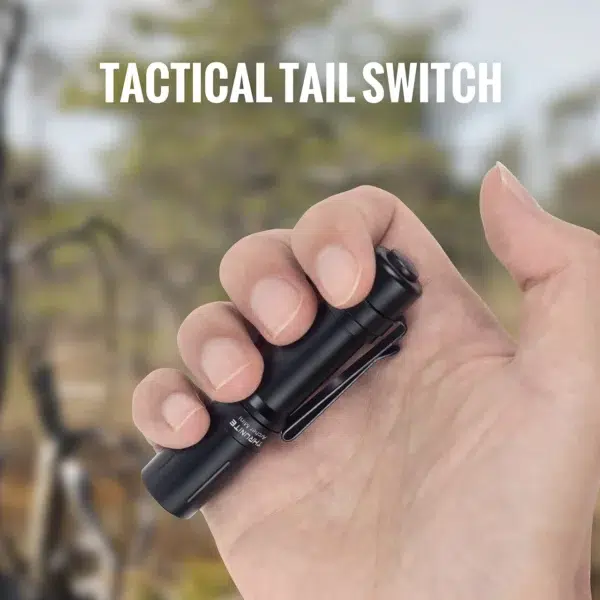

• Hold the tail switch from lockout to unlock into Low
• Hold from Low to lock; a click while locked makes the light flash to confirm lock
• After unlock, single click turns the light on or off (Low)
• Double-click from any mode: High
• Triple-click: Strobe

Body is AL 6061-T6 with type III hard anodizing. Working voltage is 2.75–4.2 V. Rating is IPX-8 (2 m) and 1.5 m impact.

Do not stare into the beam. Keep the light away from children. Tighten the head sleeve after charging.

What’s Included:

• ThruNite Archer Mini
• Built-in ThruNite 320 mAh 10400 battery
• 1 × Pocket clip
• 1 × USB-C charging cable
