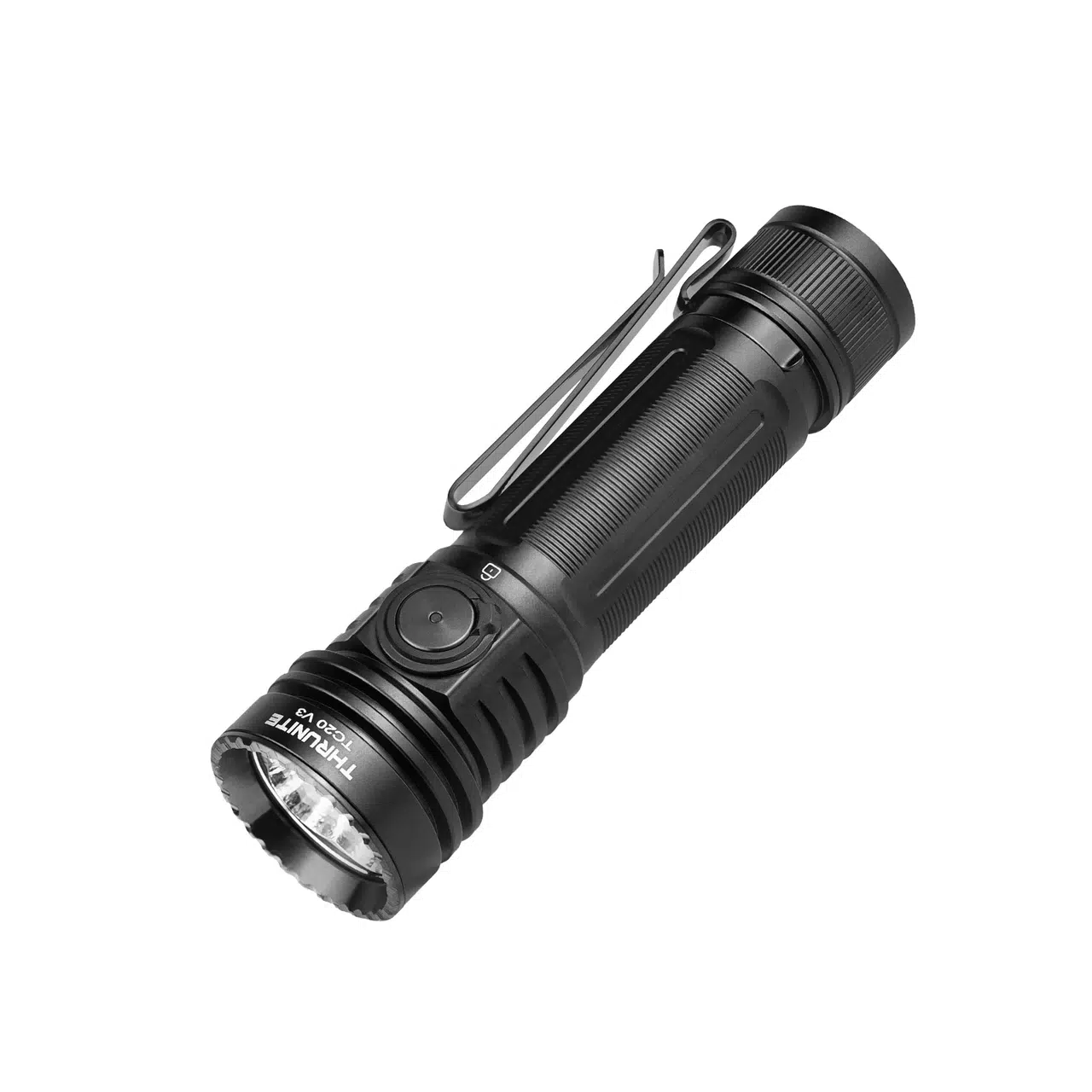

The ThruNite TC20 V3 is a wide-beam work and outdoor light. Four high-performance LEDs and an orange-peel reflector give a bright, even field rather than a thin spotlight. Maximum output is 4720 lumens. Maximum throw is 258 m. Peak intensity is 16720 cd.

It is built for close-to-mid work: camp setup, walking a path, engine-bay repairs and general night jobs. Firefly is 1 lumen for map or tent use. Turbo is the full 4720 lm burst. Strobe is 2400 lm.

A 5000 mAh 21700 USB-C cell is included. Charge the light through the body USB-C port, or plug USB-C straight into the battery. Charge indicator: red while charging, green when full. Battery check on the switch: flashing red 1–10%, solid red 11–20%, green 21–100%.

The tail is magnetic, so the light sticks to a bonnet, fridge or tool cabinet. A deep-carry clip, lanyard and pocket-friendly size (125 × 35 × 28 mm, 197 g) cover everyday carry. Body is AL 6061-T6 with Type III hard anodizing, 1.5 m drop rating and IPX-8 (2 m). Working voltage is 2.8–4.2 V. Lens is anti-reflective coated toughened glass.

A rotary dial locks the switch for bag or pocket carry. Unlock, then:

• Single click: on/off (remembers last mode except Firefly and Strobe)
• Hold: cycle Low / Medium / Medium-High / High
• Double-click: Turbo
• Triple-click: Strobe
• From off, hold: Firefly

Do not stare into the beam. Keep it away from children.

Output table

Max throw: 258 m. Max intensity: 16720 cd.

What’s Included:

• ThruNite TC20 V3
• 1 × ThruNite 5000 mAh USB-C rechargeable 21700 battery
• 1 × Pocket clip
• 1 × Lanyard
• 2 × Spare O-rings
• 1 × Spare USB rubber cover
• 1 × USB-C charging cable
